PCG-1379/10XX-926

Home/Products/Transmission gratings/Pulse compression gratings

1379 l/mm Transmission pulse compression grating for 1035 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Low wavefront distortion

  • Low stray light

PCG-1379-10XX-926
Parameter Specification
Grating resolution1379 lines / mm
Resolution accuracy+/- 0.1 line / mm
Central wavelength of operation1035 nm
Operating polarizationTE (s)
Dispersion0.112 degrees/nm @ 1035 nm
Incidence angleLittrow (45.8 degrees)

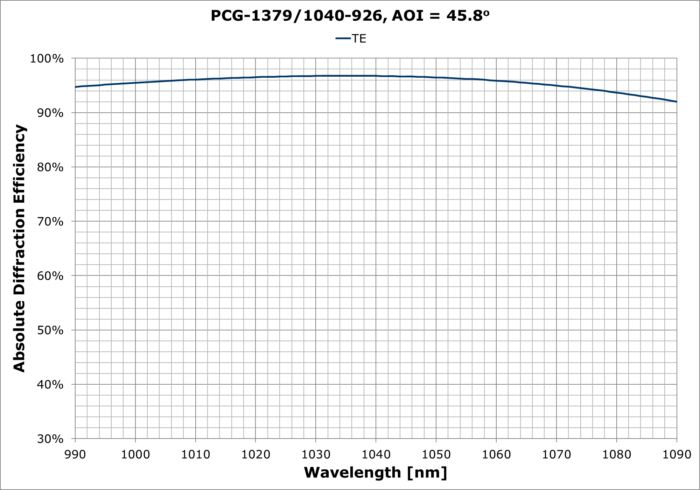

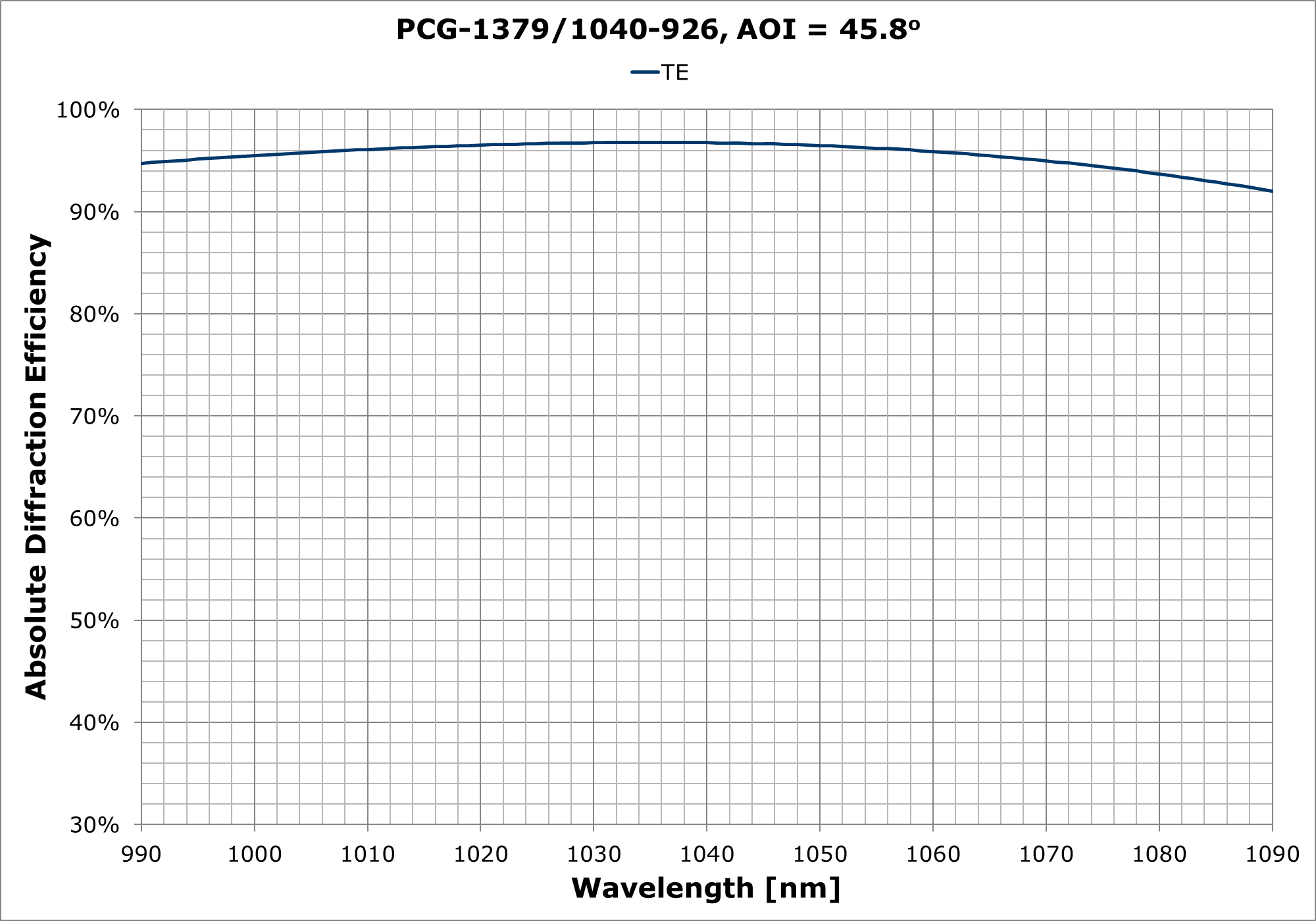

Diffraction efficiency>90% (@ 1035 nm)
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size40 mm x 15 mm
Substrate size44 mm x 19 mm
Substrate thickness 1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

$4.103,13

Quantity based pricing table

Min Max Unit Price
1 4 € 3,495.00
5 9 € 2,995.00
10 and more € 2,450.00
