Spectrometer electronics

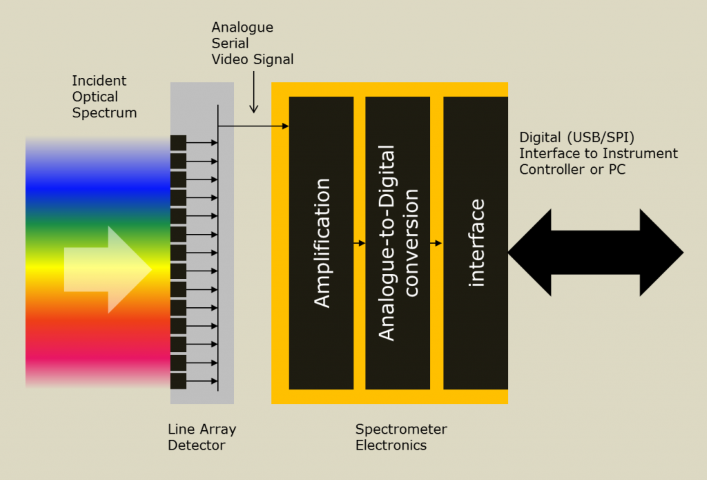

The function of our spectrometer electronics is to convert the analog video signal from the diode-array detector into a robust digital signal that can be read out via a standard interface, such as USB or SPI. The specific electronics required depend on the type of detector your spectrometer is equipped with.
Below, you will find links to all of our available electronics and cameras. For some spectrometers, we also offer the option to deliver the spectrometer without electronics, allowing you to develop your own.

DISB-101T
Electronics used for most CMOS equipped spectrometers.
The interface is a Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of DISB-101T in the table below.

Electronics | DISB-101T |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate over SPI | 600 Hz (2048 px) 300 Hz (4096 px) |
Frame rate over USB | 250 Hz (2048 px) 125 Hz (4096 px) |
Supported detectors | S11639-01 CMOS S13496 CMOS |
Power consumption (typ.) | 08 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-10 nano sec. |
Output for lamp control | Yes |
On-board calculations | Averaging |
Region of interest | Yes |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Remote firmware upgrade | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-105
Electronics used for our compact CMOS-equipped spectrometers.
The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-105 in the table below.

Electronics | DISB-105 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 256 pixels) | 4800 Hz |
Supported detectors | S14739 |
Power consumption (typ.) | 0.8 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-10 nano sec. |
On-board calculations | Averaging |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-220
Electronics used for our NMOS-equipped spectrometers.
The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-220 in the table below.

Electronics | DISB-220 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 256 pixels) | 148 Hz |
Supported detectors | S8380 S8381 |
Power consumption (typ.) | 0.775 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-10 nano sec. |
On-board calculations | Yes |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-290
Electronics used for our TE-cooled NMOS-equipped spectrometers.
The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-290 in the table below.

Electronics | DISB-290 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 256 pixels) | 148 Hz |
Supported detectors | S8382 S8383 |
Power consumption (typ.) | 0.275 W |
TEC power consumption (typ.) | 2 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-10 nano sec. |
On-board calculations | Yes |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
TEC control | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-315
Electronics used for our low-noise non-cooled CCD-equipped spectrometers.
The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-315 in the table below.

Electronics | DISB-305/315 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate(SPI, 1024/2048 pixels) | 166/100 Hz |
Supported detectors | S10420 BT-CCD |
Power consumption (typ.) | 0.275 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-20 nano sec. |
On-board calculations | Averaging |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-380
Electronics used for our high-speed non-cooled CCD-equipped spectrometers.
The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-380 in the table below.

Electronics | DISB-380 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 2048 pixels) | 600 Hz |
Supported detectors | S11156 BT-CCD |
Power consumption (typ.) | 3.7 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-10 nano sec. |
On-board calculations | No |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-386
Electronics used for our low-noise TE-cooled CCD-equipped spectrometers. The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-386 in the table below.

Electronics | DISB-386 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 2048 pixels, S11850/S14651 detector) | 100/83 Hz |
Supported detectors | S11850 BT-CCD S14651 BT-CCD |
Power consumption (typ.) | 1.25 W |
TEC power consumption (typ.) | 0.7 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-20 nano sec. |
On-board calculations | Averaging |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
TEC control | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-400
Electronics used for compact un-cooled InGaAs-equipped spectrometers. The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-400 in the table below.

Electronics | DISB-400 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 256 pixels) | 3000 Hz |
Supported detectors | G13913 |
Power consumption (typ.) | 0.8 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-20 nano sec. |
On-board calculations | Averaging |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-411
Electronics used for compact un-cooled InGaAs-equipped spectrometers. The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-411 in the table below.

Electronics | DISB-411 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 256 pixels) | 4800 Hz |
Supported detectors | G11620 |
Power consumption (typ.) | 0.8 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-20 nano sec. |
On-board calculations | Yes |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-415
Electronics used for compact un-cooled InGaAs-equipped XNIR spectrometers. The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-415 in the table below.

Electronics | DISB-415 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 128 pixels) | 9600 Hz |
Supported detectors | G11476N-128LB |
Power consumption (typ.) | 0.8 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-20 nano sec. |
On-board calculations | Yes |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-485
Electronics used for high-speed high-resolution InGaAs-equipped spectrometers. The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-485 in the table below.

Electronics | DISB-485 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 1024 pixels) | 1500 Hz |
Supported detectors | G14714-1024DG |
Power consumption (typ.) | 1.4 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-20 nano sec. |
On-board calculations | Yes |
On-board storage of calibration coefficient | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
DISB-466
Electronics used for TE-cooled InGaAs-equipped spectrometers. The interface is Serial Peripheral Interface (SPI) and by combining it with a USB Bridgeboard, you can interface over USB. You can see a list of the features of our DISB-466 in the table below.

Electronics | DISB-466 |
---|---|
Main interface | SPI |
Optional interface | USB (DISB-USB Bridge) |
Frame rate (SPI, 256 pixels) | 3000 kHz |
Supported detectors | G11508 InGaAs G11477 InGaAs |
Power consumption (typ.) | 1.25 W |
TEC power consumption (typ. S11508 / S11477) | 3.9 / 6.0 W |
Integration time control | Configurable integration time |
External trigger | Configurable delay Jitter +/-20 nano sec. |
On-board calculations | Averaging |
On-board storage of calibration coefficient | Yes |
TEC control | Yes |
Temperature monitor | Yes |
Evaluation Software (Windows) | DISB-USB Evaluation SW |
Programming interface | Register R/W over SPI |
