PCG-1600-970-977

Home/Products/Transmission gratings/Pulse compression gratings

1600 l/mm Transmission pulse compression grating for 970 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Low wavefront distortion

  • Low stray light

PCG-1600-970-977
Parameter Specification
Grating resolution1600 lines / mm
Resolution accuracy+/- 0.5 line / mm
Central wavelength of operation970 nm
Operating polarizationTE (s)
Dispersion0.145 degrees/nm @ 970 nm
Incidence angleLittrow (51.6 degrees)

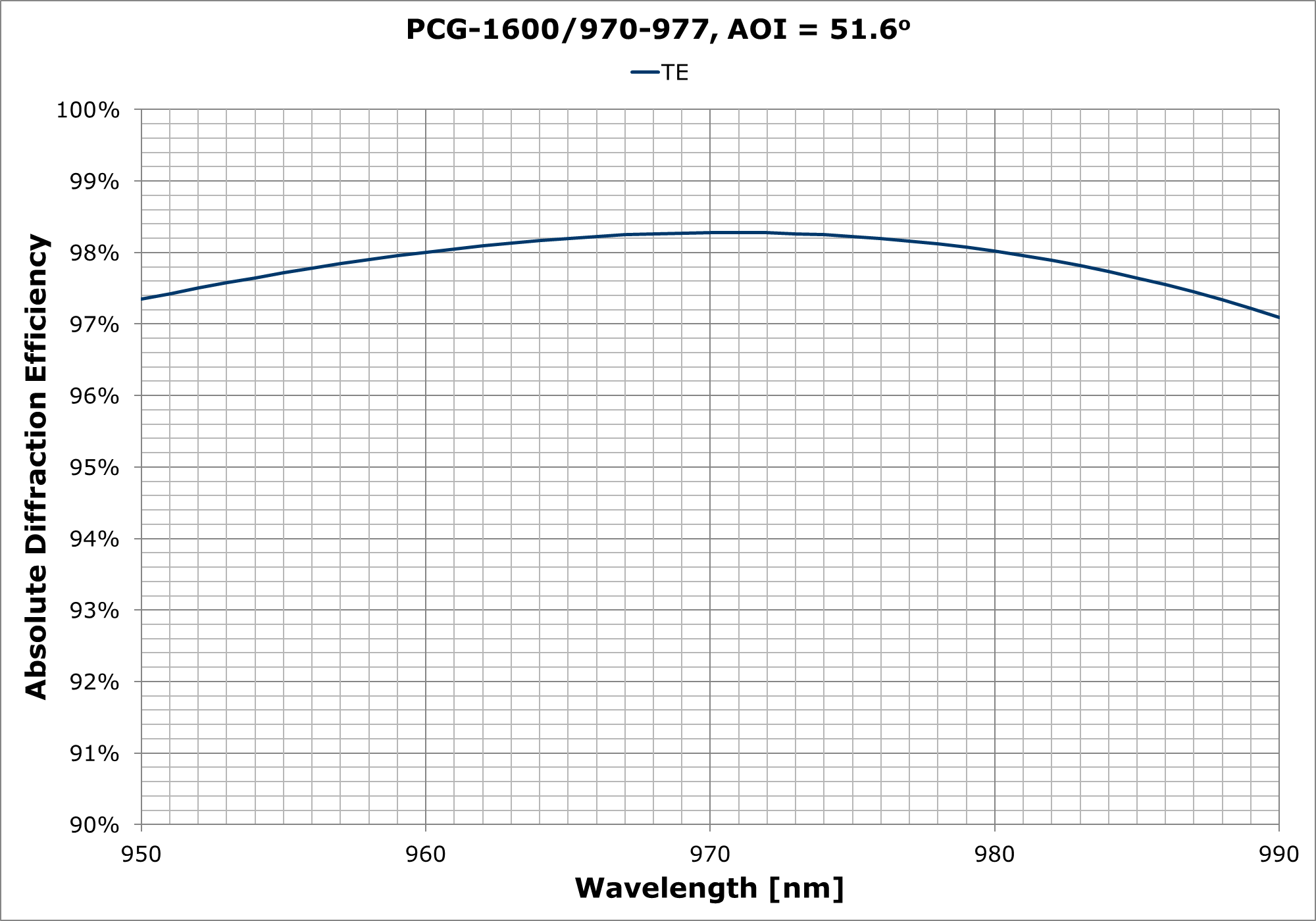

Diffraction efficiency>94% (@ 970 nm)
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size38 mm x 18 mm
Substrate size40 mm x 20 mm
Substrate thickness 1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

$5.277,13

Quantity based pricing table

Min Max Unit Price
1 4 € 4,495.00
5 9 € 3,745.00
10 and more € 2,995.00
