PCG-1500/932-975

Home/Products/Transmission gratings/Pulse compression gratings

1500 l/mm Transmission pulse compression grating for 932 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Low wavefront distortion

  • Low stray light

PCG-1500/932-975
Parameter Specification
Grating resolution1500 lines / mm
Resolution accuracy+/- 0.5 line / mm
Central wavelength of operation932 nm
Operating polarizationTE (s)
Dispersion0.121 degrees/nm @ 932 nm
Incidence angleLittrow (44 degrees)

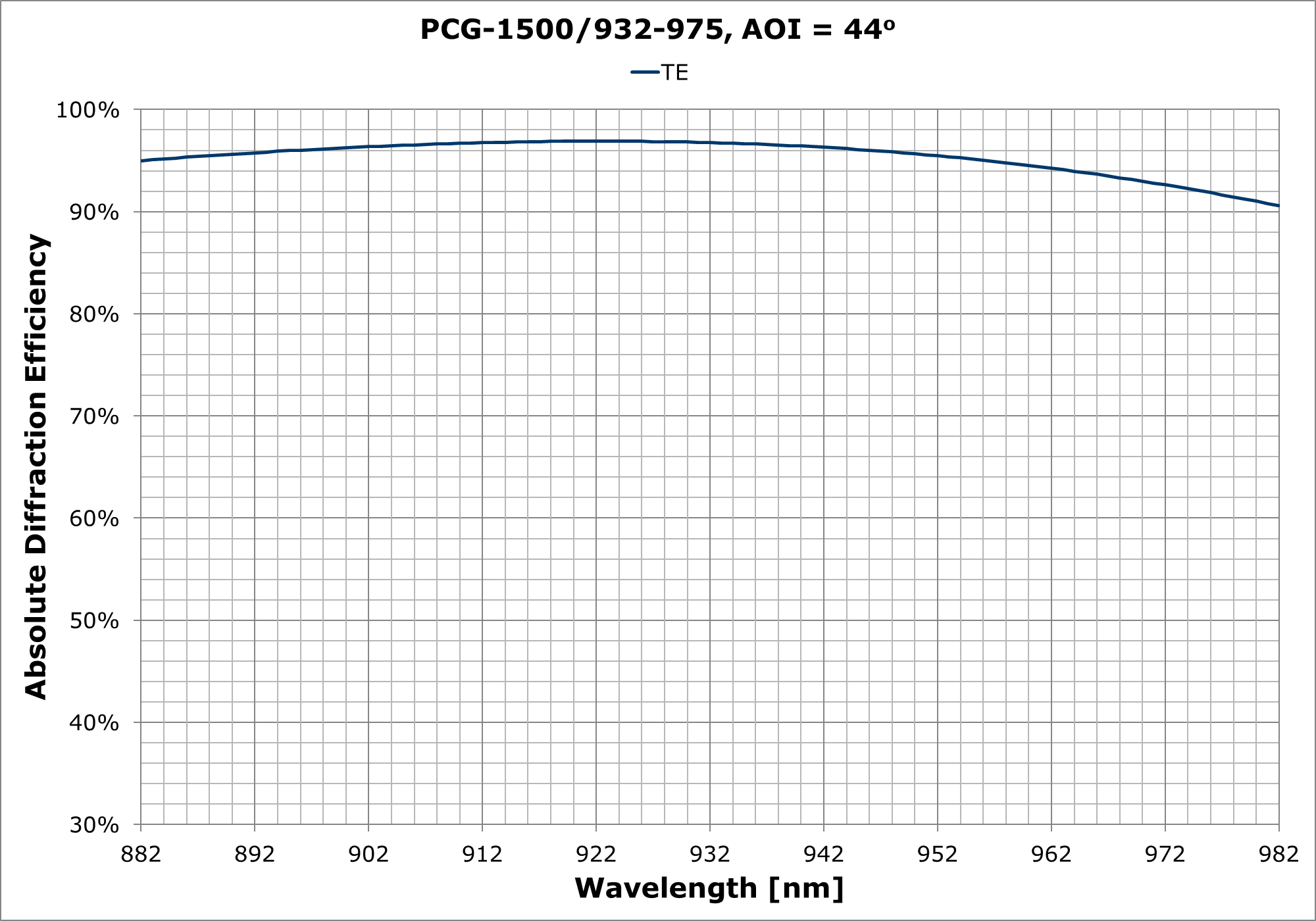

Diffraction efficiency>93% (@ 932 nm)
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size11 mm x 6 mm
Substrate size15 mm x 10 mm
Substrate thickness 1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

$1.755,13

Quantity based pricing table

Min Max Unit Price
1 4 € 1,495.00
5 9 € 1,250.00
10 and more € 995.00
