PING-1500-915-980-030

Home/Products/Transmission gratings/Pulse compression gratings

1500 l/mm Transmission pulse compression grating for 915-980 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Low wavefront distortion

  • Low stray light

PING-1500_915-980-030
ParameterSpecification
Grating technologySurface relief, etched transmission gratings
Production technologyHolographic/lithographic stepper and RIE etching
Grating resolution1500 l/mm
Illumination bandwidth915 nm - 980 nm

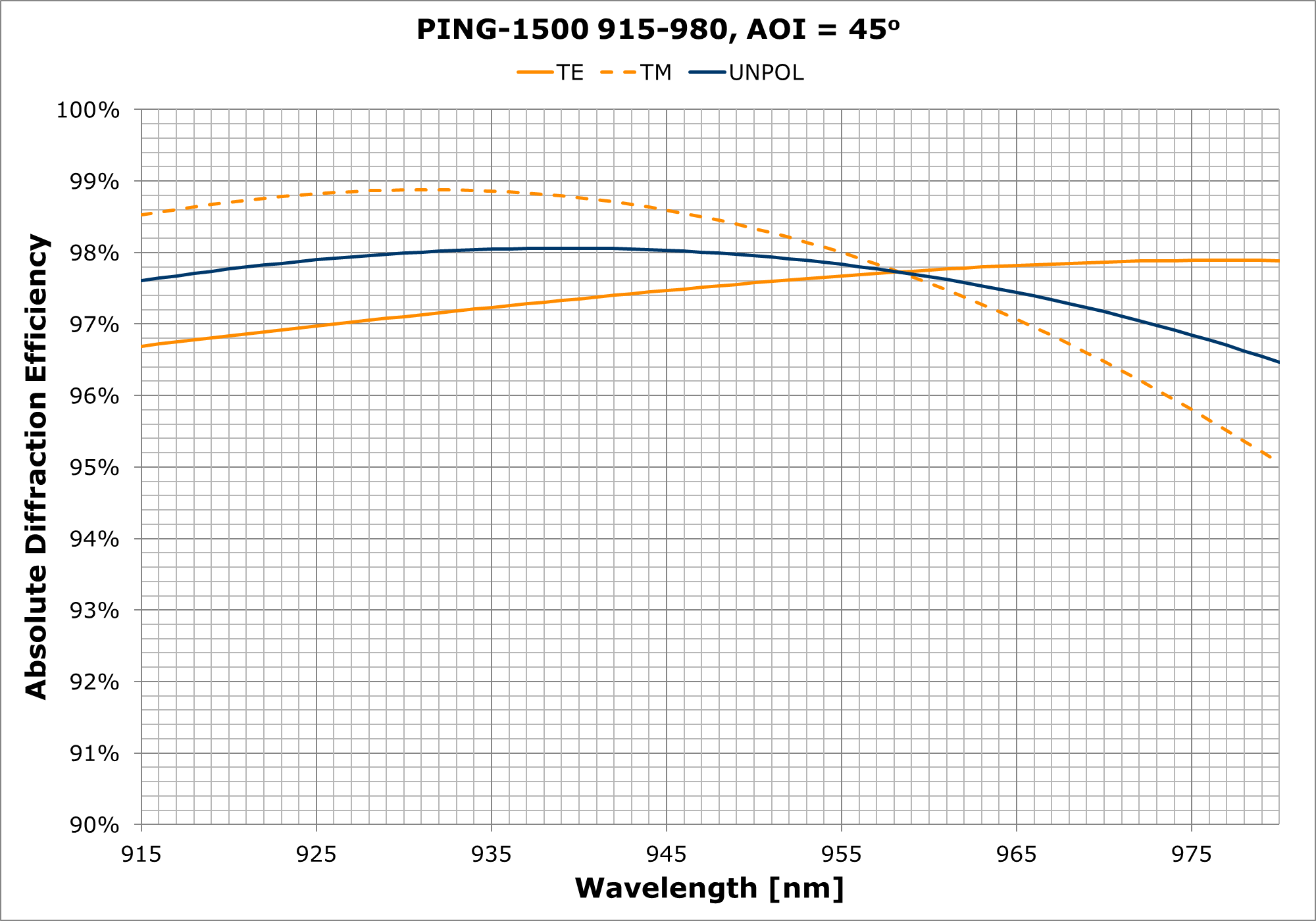

Angle of incidence45 deg (nominal - see plot below which shows great AOI tolerance)
Diffraction efficiency (TE & TM)> 90%
Materials100% dielectric materials
Grating area18 mm x 12 mm
Chip size20 mm x 14 mm
Chip thickness1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

$2.342,13

Quantity based pricing table

Min Max Unit Price
1 4 € 1,995.00
5 9 € 1,750.00
10 and more € 1,495.00
